chủ sở hữu hợp pháp duy nhất của thương hiệu CALIN và là nhà sản xuất duy nhất của đồng hồ đo tiện ích dòng Calin.
Calinmeter bảo lưu quyền theo đuổi bất kỳ biện pháp pháp lý nào từ Bất kỳ ai hoặc tổ chức nào tuyên bố là nhóm hoặc chi nhánh của Calin hoặc phân phối các sản phẩm máy đo của Calin mà không có sự cho phép thích hợp.
Nguồn gốc: | Trung Quốc |
Hàng hiệu: | Calin |
Chứng nhận: | CE/SABS/IEC |
Số mô hình: | CA568-G |
Số lượng đặt hàng tối thiểu: | đàm phán |
---|---|
Giá bán: | Negotiation |
chi tiết đóng gói: | thùng carton |
Thời gian giao hàng: | 30 ngày |
Điều khoản thanh toán: | Western Union, Paypal, T/T, L/C |
Khả năng cung cấp: | 10, 000chiếc mỗi tháng |
Tên sản phẩm: | GPRS đọc trả trước từ xa đồng hồ nước | Tiêu chuẩn: | 2004/22 / EC (MID), OIML R49 |
---|---|---|---|
Trọng lượng: | 1300 g | Màn hình hiển thị: | LCD / bộ đếm |
Độ chính xác: | Lớp B | Thông tin liên lạc: | GPRS |
Điểm nổi bật: | remote water meter,prepayment water meter |

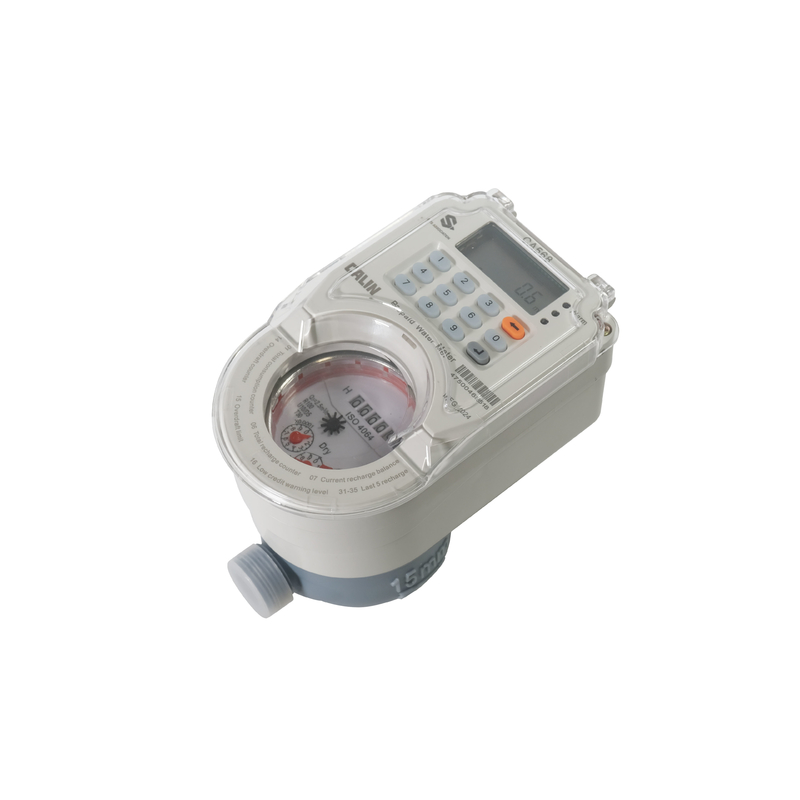

The CA568-G is a multi-jet wet / dry type, GPRS remote reading and prepaid water meter. The meter works with a low power bistable latched valve driven by battery that is able to open and shut for 4 million times during battery lifetime. CA568-G series assure you of continuously good metrology and revenue protection at the same time.With potted electronic part sealed above on the metering chamber, away from the water, which makes the meter water proof and adaptable to humid and tropical environments.
The meter works with our Billing system station, the water meters can transmit the data via GPRS to the Billing station.
To top-up or recharge the water meter, a consumer just need to purchase 20 digits' credit token from the vendor and punch in the code with the CIU. With our broad range of prepaid vending solutions, a utility or service provider can manage not only water meter but also STS prepaid electricity meters in one vending system.
Calinmeter has over 10 years experience in STS prepayment metering. We design, manufacture STS prepayment meters and OEM for other meter factories as well. Indonesia is our strategic long term market and our calin meter meets the national standard in Indonesia. There is no doubt that Calin is the right one you are not going to missing.
Features
a) DN15, 20, 25 up to DN100
b) Wireless LoRa technology
c) Split operation with an in home CIU
d) Up to 1 mile communication distance between meter and DCU(Data concentrator)
e) LCD and Counter register dual display
f) Potted electronics making meter water resistant in humid and tropical environments
g) Tamper and fraud proof
h) Low credit warning
i) Life time data retention in absence of power
j) Prepared for AMR / AMI functions (optional)
Key benefits
1) Suitable for new reticulation and retrofittings
2) Multi-tariff and consumption record on Time of Use (TOU) basis
3) Auto-register with head-end sever system
4) Easy setting of free basic water, emergency credit, low credit warning, arrear policy
5) Supports drive-by reading and fully automated reading for AMI smart metering applications
6) Remote valve control on / off
7) Reduced operational and inventory cost
Specifications:
Nominal size |
Dn |
mm |
in-line |
||
15 |
20 |
25 |
|||
Maximum flow rate |
Q4 |
m3/h |
3.125 |
5.0 |
7.875 |
Ratio “R” |
Q3/Q1 |
|
80 |
80 |
80 |
Permanent l flow rate |
Q33 |
m3/h |
2.5 |
4.0 |
6.3 |
Transitional flow rate |
Q22 |
0.05 |
0.08 |
0.126 |
|
Minimum flow rate |
Q11 |
0.031 |
0.05 |
0.0787 |
|
Minimum reading |
m3 |
0.0005 |
|||
Maximum reading |
99999 |
Maximum Permission Error (MPE)
Q1≦Q≦,Q2 MPE =+ 5% Q2≦Q≦Q4, MPE= + 2% (For hot water metering, MPE=+ 3%)
Dimensions and diagram
Nominal size |
Length |
Width |
Height |
Thread |
mm |
D |
|||
15 |
165 |
101 |
124 |
G3/4B |
20 |
195 |
101 |
124 |
G1B |
25 |
225 |
101 |
124 |
G5/4B |
